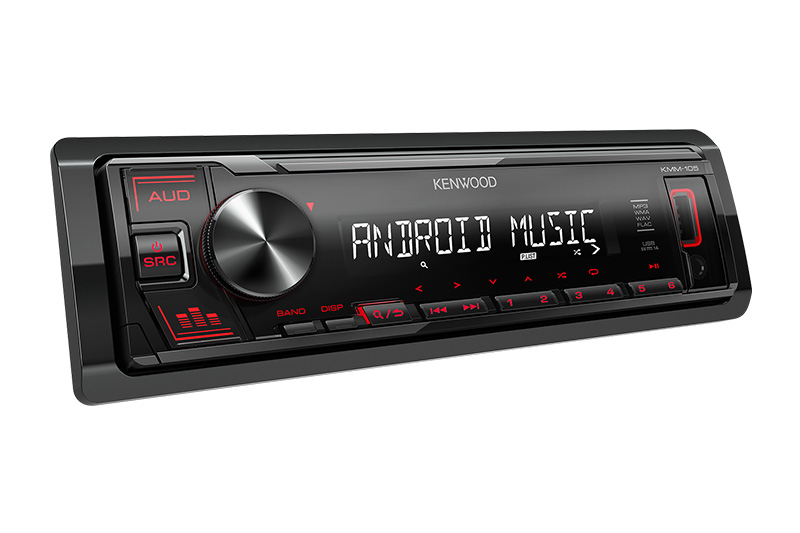

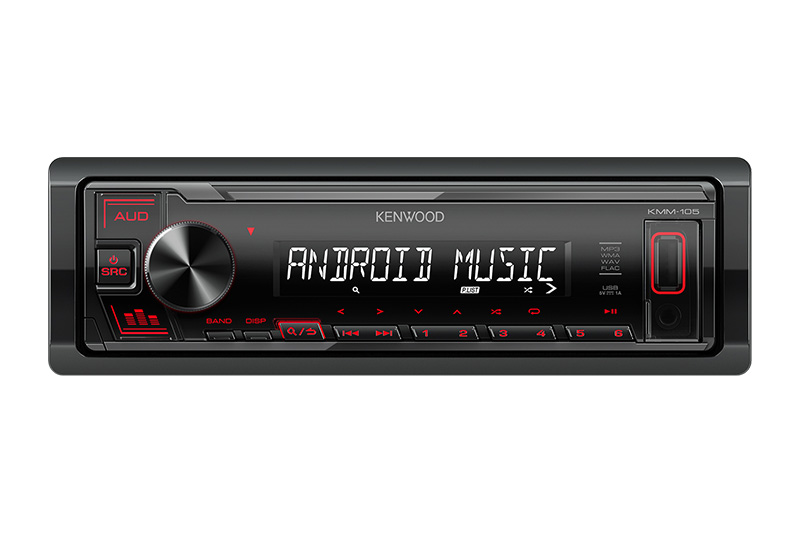

Kenwood KMM-105

FM
Frequency Range(MHz) (Frequency step) 87.5MHz to 108.0MHz (50kHz)
Usable Sensitivity S/N30dB 0.71μV/75Ω
Quieting Sensitivity DIN S/N 46dB (2.0μV/75Ω）
Frequency Response (±3.0dB) 30Hz to 15kHz
S/N(dB) 64.0dB(MONO)
Stereo Separation 40dB(1kHz)

MW (AM)
Frequency Range(kHz) (Frequency step) 531kHz to 1611kHz (9kHz)
Usable Sensitivity (S/N 20dB) 28.2μV

LW
Frequency Range(kHz) (Frequency step) 153kHz to 279kHz (9kHz)
Usable Sensitivity (S/N 20dB) 50μV

Preout Level(mV)/Load       -Unbalanced 2500mV/10kΩ(USB)
Preout Impedance(Ω) ≦600Ω
Speaker Impedance(Ω) 4 to 8Ω

USB I/F
USB USB 1.1 / 2.0 Full Speed
File System FAT12 / 16 / 32
Maximum Supply current DC5V(DC logo) 1A
Frequency Response 20Hz to 20kHz(±1dB)
S/N Ratio (dB) 99dB(1kHz)
Dynamic Range 93dB
Channel Separation 89dB
MP3 decode Compliant with MPEG-1/2 Audio Layer-3
WMA decode Compliant with Windows Media Audio
AAC Decode -
Treble Linear-PCM
FLAC Decode FLAC file (Up to 48kHz/16bit)

AUX Input
Frequency Response 20 to 20kHz ±3dB
Input Maximum Voltage 1000mV
Input Impedance 30kΩ

AMP
PWR(MAX) 50Wx4
Full Bandwidth Power (at less than 1%THD) 22Wx4

TONE
Bass 100Hz ±8dB
Middle 2.5kHz ±8dB
Treble 12.5kHz ±8dB

GENERAL
Operating voltage 12V DC car battery
Installation Size
(W) 182mm
(H) 53mm
(D) 100mm

Net Weight (Trim plate and Mounting sleeve: Included) 0.6kg
