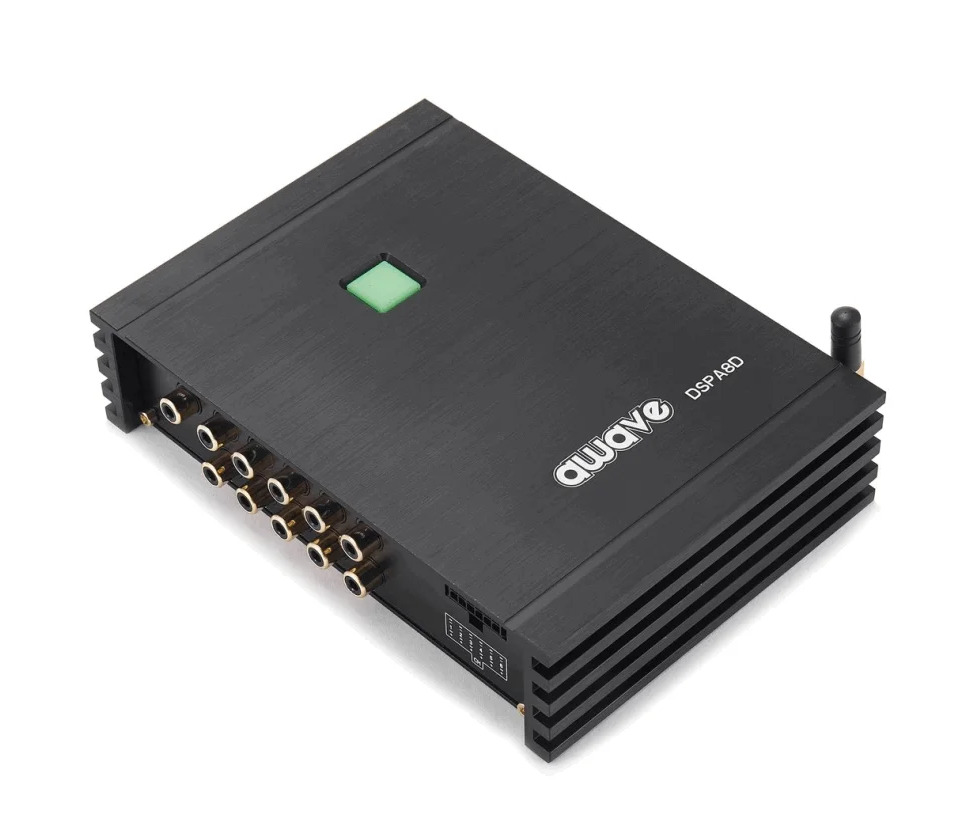

Процессорный усилитель Awave DSP A8D

HI-End level components AKM7735 high-performance DSP chip

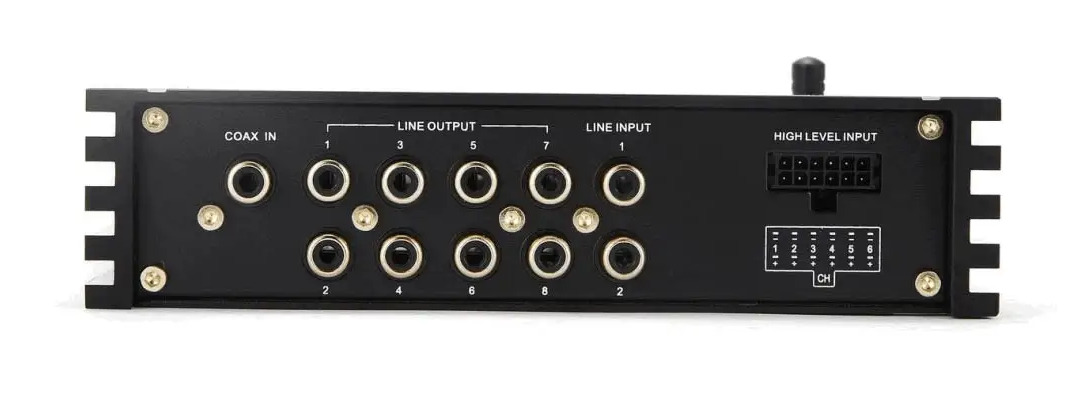

Input channel
6 high-level inputs, 2-channel RCA input(Reuse 1 and 2 high-level inputs)
Fiber optic input, coaxial input
OTG input, USB input
Bluetooth 5.0 input

High level input combined frequency: Each channel supports up to 6 independent input combined frequencies

Output channel: 6 high-level outputs, 8 RCA outputs
Amplifier output: D-class amplifier: 6CH x 50W (42,14.4V, 1kHz, 1%THD)

Signal to noise ≥100dB
Total ramp distortion ≤0.01%
Input sensitivity RCA/Cinch: 1-8V High level: 8-32V
Input impedance RCA/Cinch: 22k High level: 3.3-1002
RCA output voltage 1.5v
Operating Voltage 9~18V

Input channel equalizer
Each input channel has an independent 5-segment equalizer
Filter type: ALLPASS (all pass filter)
Center frequency point: 20Hz~20KHz
Q value: 0.3~15
Gain: -15db~+15db

Output signal divider
Each channel is independently adjustable
Filter type: Butterworth/Nink-Rein/Bessel
Filter frequency: 20Hz~20KHz
Filter slope: 6dB/Oct~48dB/Oct

Output channel equalizer
Each channel has an independent 31 segment equalizer
Filter type: ALLPASS (all pass filter)
Center frequency point: 20Hz~20KHz
Q value: 0.3~15
Gain: -15dB~+15dB

Equalizer joint debugging mode: Independent adjustment/absolute linkage adjustment/relative linkage adjustment
/ crossover point linkage adjustment
Output polarity: Each channel is independently adjustable: positive/negative
Output delay: Independent adjustment for each channel: 0-20ms

Output volume
Single channel output volume: mute, -40dB-0dB
Single channel subwoofer: mute, -40dB~0dB
Total volume of subwoofer: mute, -40dB~+12dB
Total volume adjustment: mute, -40dB~+12dB

Line control extend Mode selection, total volume control, bass total volume control
Computer tuning Windows system, XP system, USB interface, no drive required
