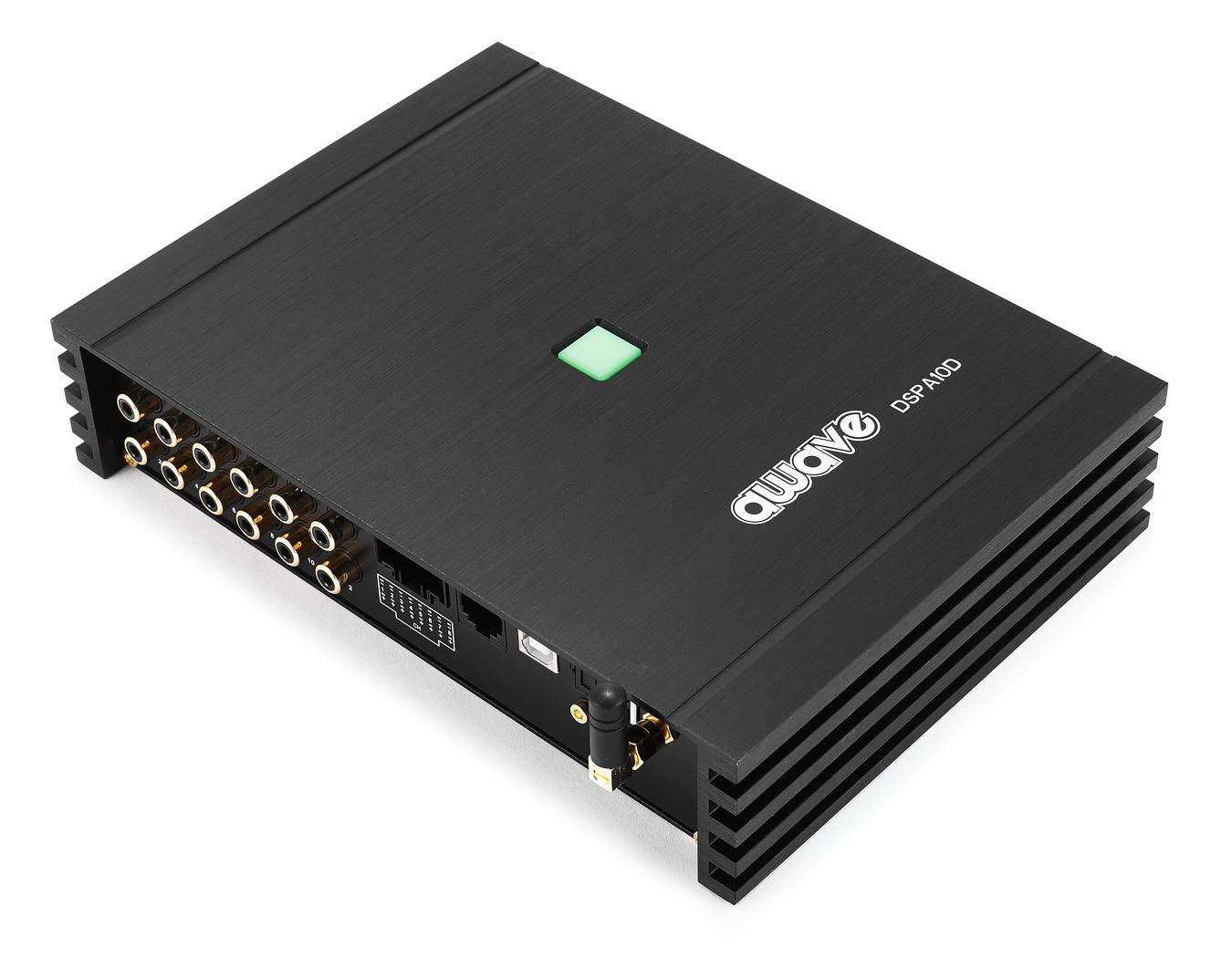

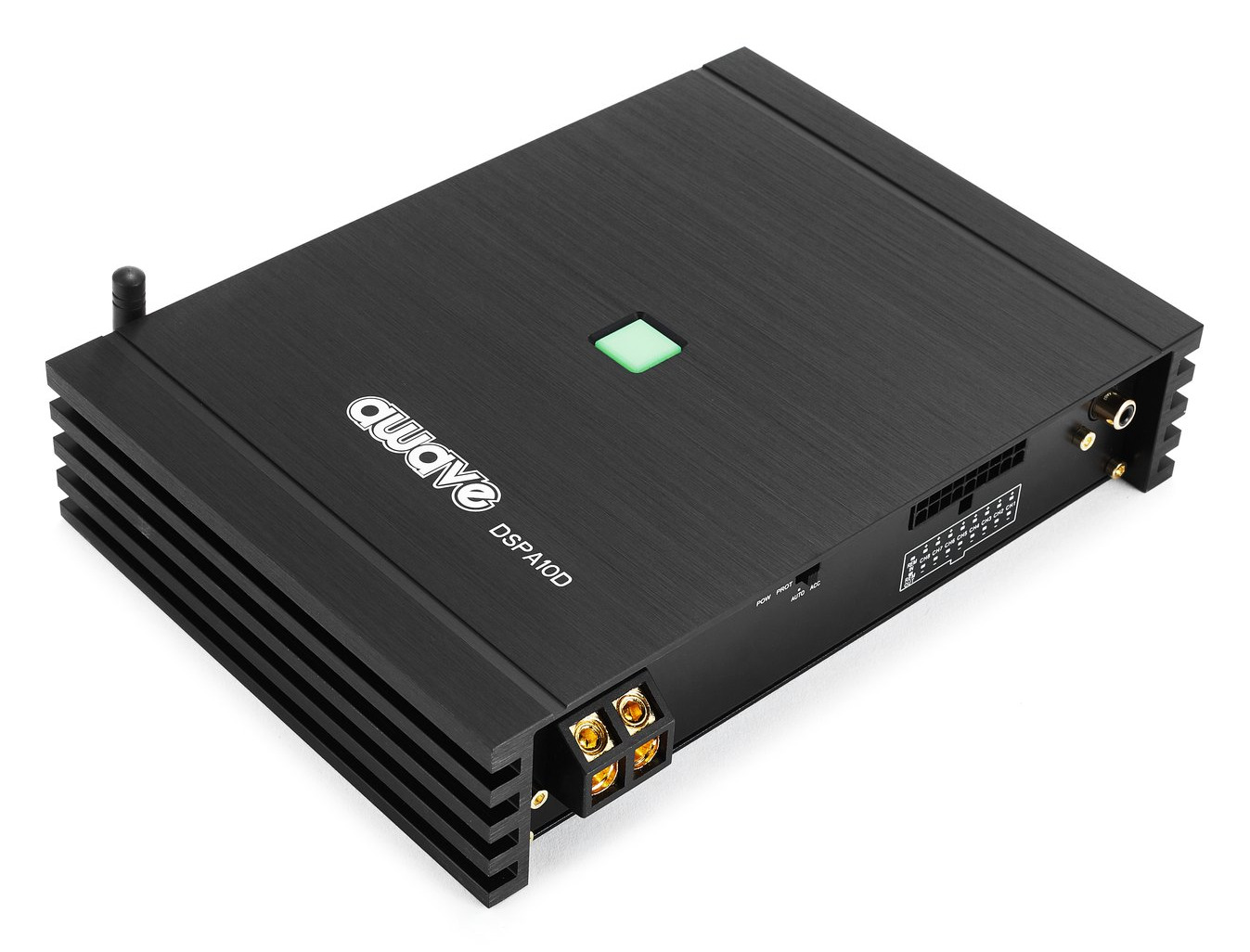

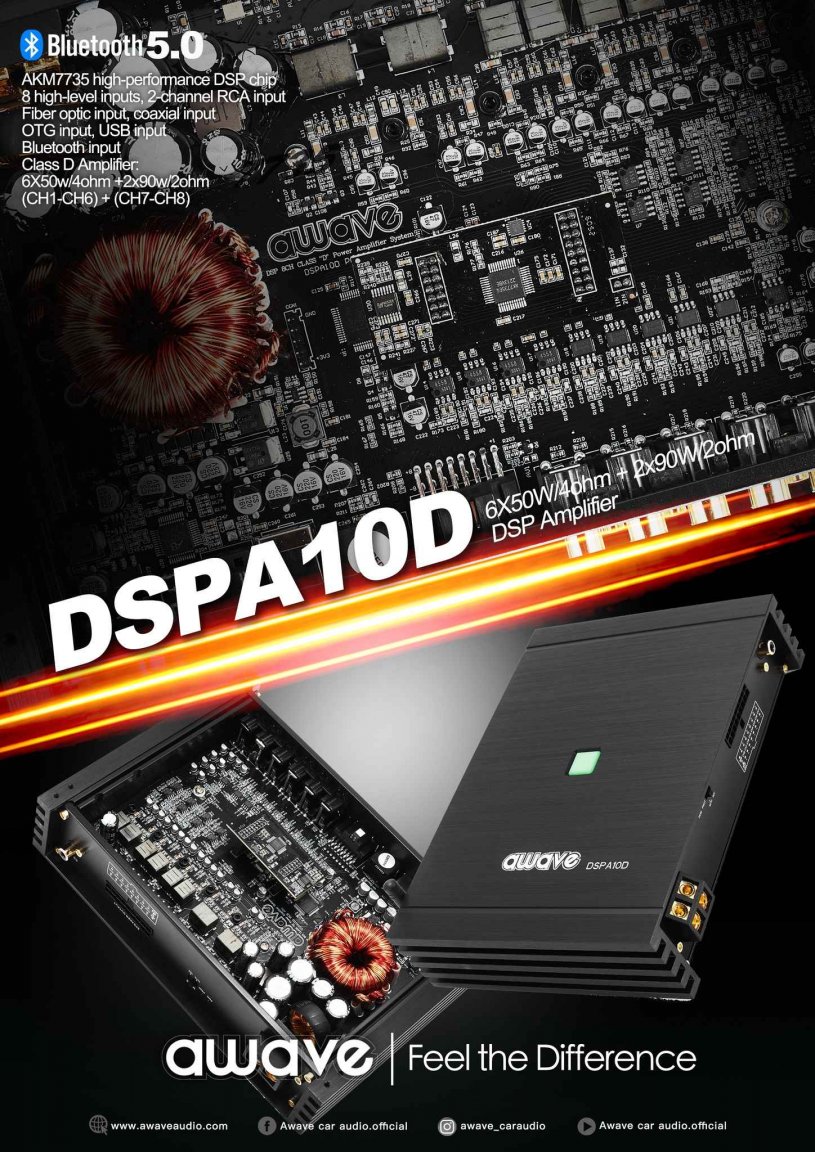

Процессорный усилитель Awave DSP A10D

HI-End level components AKM7735 high-performance DSP chip

Input channel
8 high-level inputs, 2-channel RCA input
Fiber optic input, coaxial input, OTG input, USB input, Bluetooth 5.0 input (5 choose 1)

High level input combined frequency Each channel supports up to 8 independent input combined frequencies

Output channel
8 high-level outputs, 10 RCA outputs

Amplifier output
6Χ50w/4Ω+2x90w/2Ω (CH1-CH6)+(CH7-CH8)

Signal to noise ≥100dB
Total ramp distortion ≤0.01%

Input sensitivity
RCA/Cinch: 1-8V
High level: 8-32V

Input impedance
RCA/Cinch: 22k
High level: 3.3-1002

RCA output voltage 1.5v

Operating Voltage 9~17V

Input channel equalizer
Each input channel has an independent 5-segment equalizer
Filter type: ALLPASS (all pass filter)
Center frequency point: 20Hz~20KHz
Q value: 0.3~15
Gain: -15db~+15db

Output signal divider
Each channel is independently adjustable
Filter type: Butterworth/Nink-Rein/Bessel
Filter frequency: 20Hz~20KHz
Filter slope: 6dB/Oct~48dB/Oct

Output channel equalizer
Each channel has an independent 31 segment equalizer
Filter type: ALLPASS (all pass filter)
Center frequency point: 20Hz~20KHz
Q value: 0.3~15
Gain: -15dB~+15dB

Equalizer joint debugging mode: Independent adjustment/absolute linkage adjustment/relative linkage adjustment
/ crossover point linkage adjustment
Output polarity: Each channel is independently adjustable: positive/negative
Output delay: Independent adjustment for each channel: 0~20ms
Intelligent mixing: Intelligent recognition and automatic switching of save modes corresponding to any multiple
input audio sources

Output volume
Single channel output volume: mute, -40dB~0dB
Single channel subwoofer: mute, -40dB~0dB
Total volume of subwoofer: mute, -40dB~+12dB
Total volume adjustment: mute, -40dB~+12dB

Line control extend: Mode selection, total volume control, bass total volume control
Computer tuning: Windows system, XP system, USB interface, no drive required
