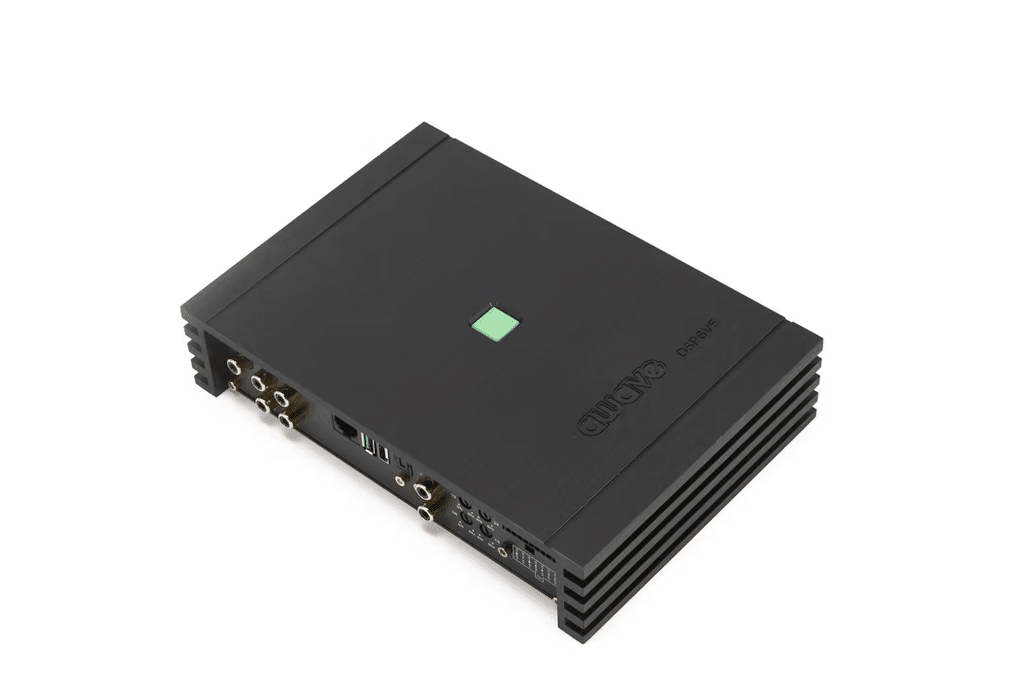

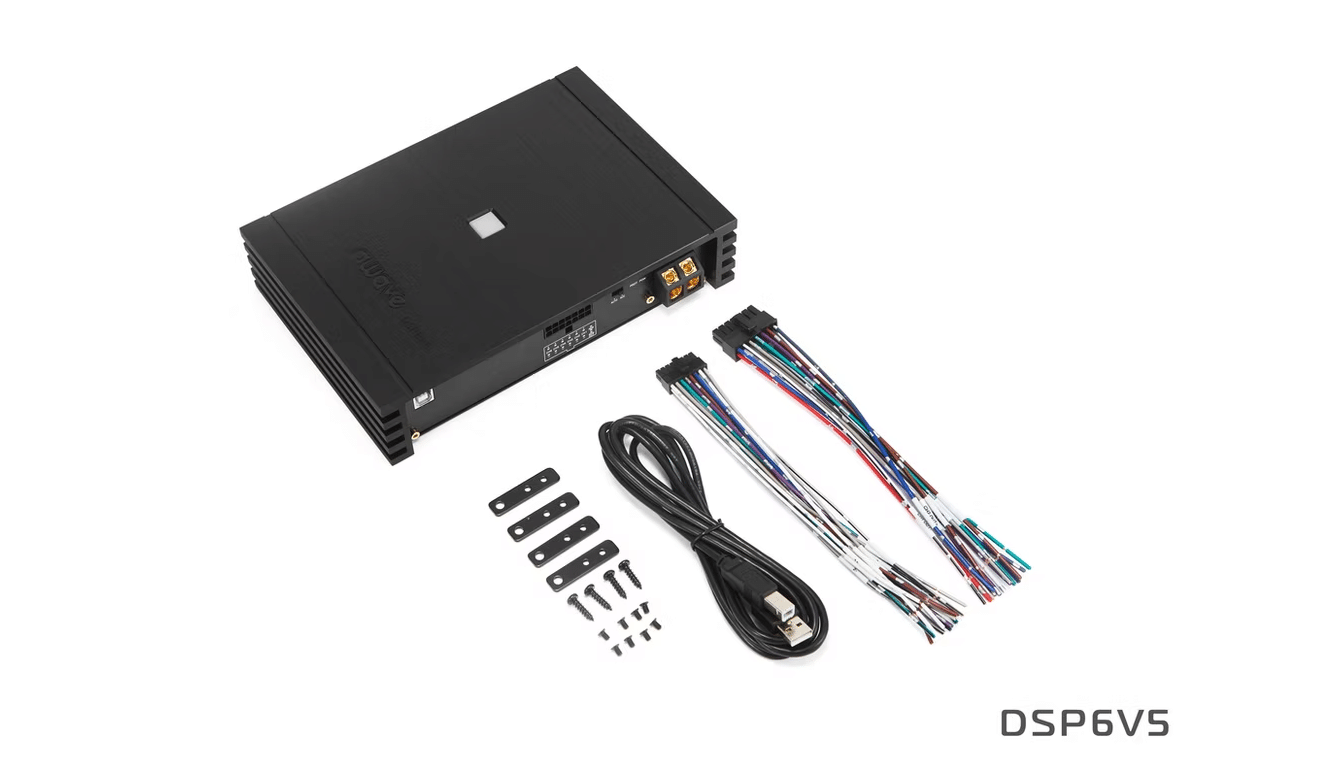

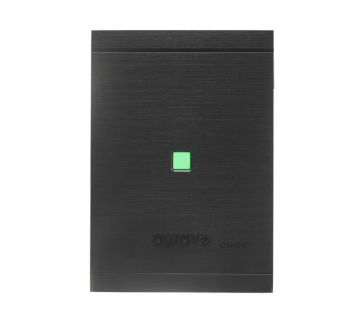

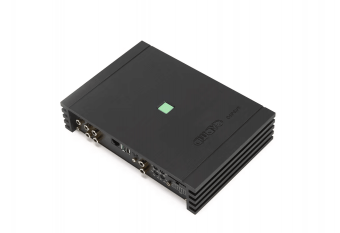

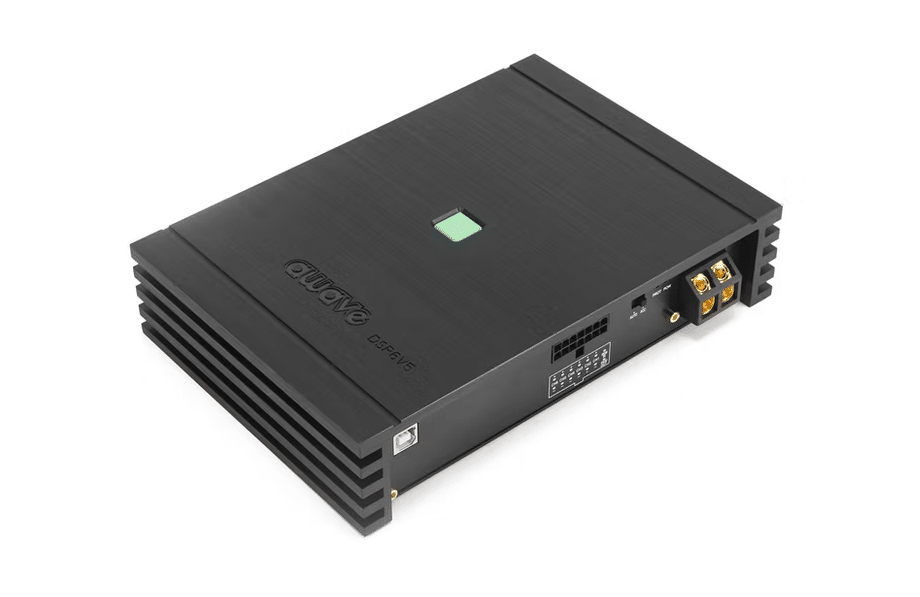

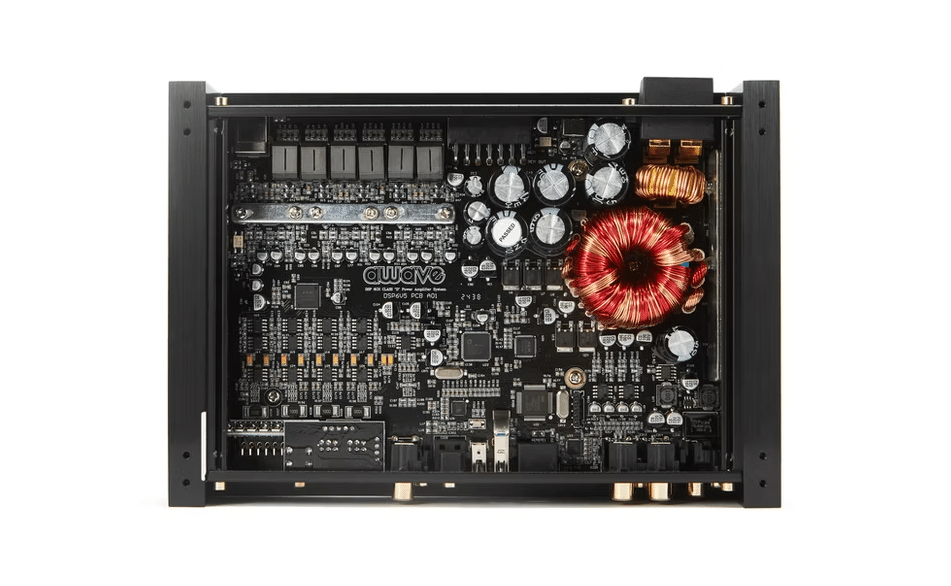

Процессорный усилитель Awave DSP6V5

6-channel amplifier with integrated DSP processor.

Output channel equalizer
Centre frequency point: 20Hz~20KHz
Q-value: 0,3~15
Amplification: -15dB~+15dB

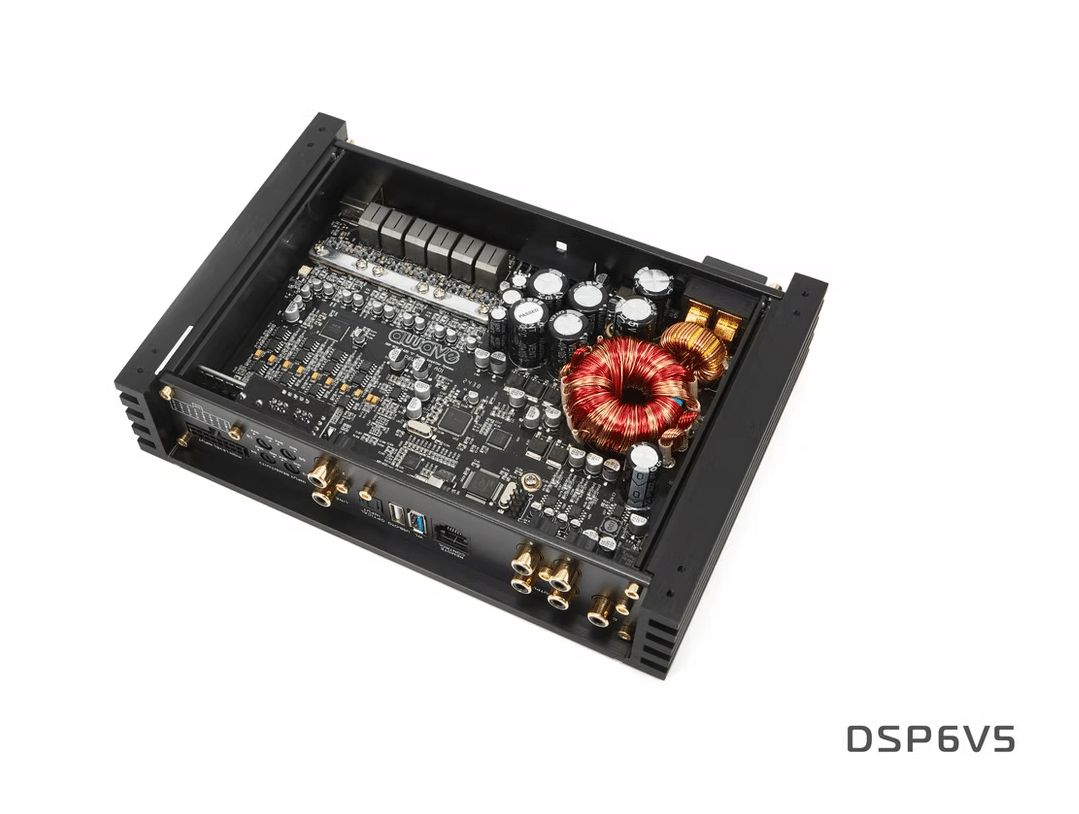

Electronic circuits
High-performance DSP from ADI
Analogue-to-Digital Converter (ADC): AKM5538 HI-End 768kHz/32-bit digital signal
HI-End components

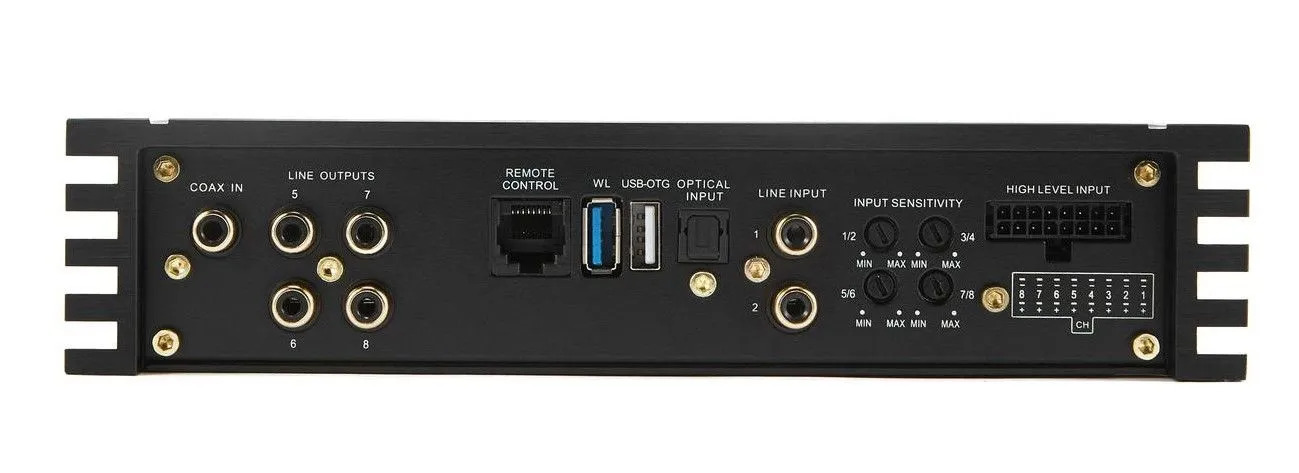

Input channel
High-level input with combined frequency
Digital-to-Analogue Converter (DAC): AKM4458 HI-End 768kHz/32-bit
Professional audio operational amplifier
Hi-End professional audio capacitor
8 high-level inputs
2-channel RCA input and high-level 1.2 multiplexing
Optical input, coaxial input - 192kHz/32-bit support
OTG input - 192kHz/24-bit support
Bluetooth input

Bluetooth support
Bluetooth 5.0
Bluetooth protocol: A2DP/AVRCP
Bluetooth formats supported: aptX/aptX HD/AAC/SBC

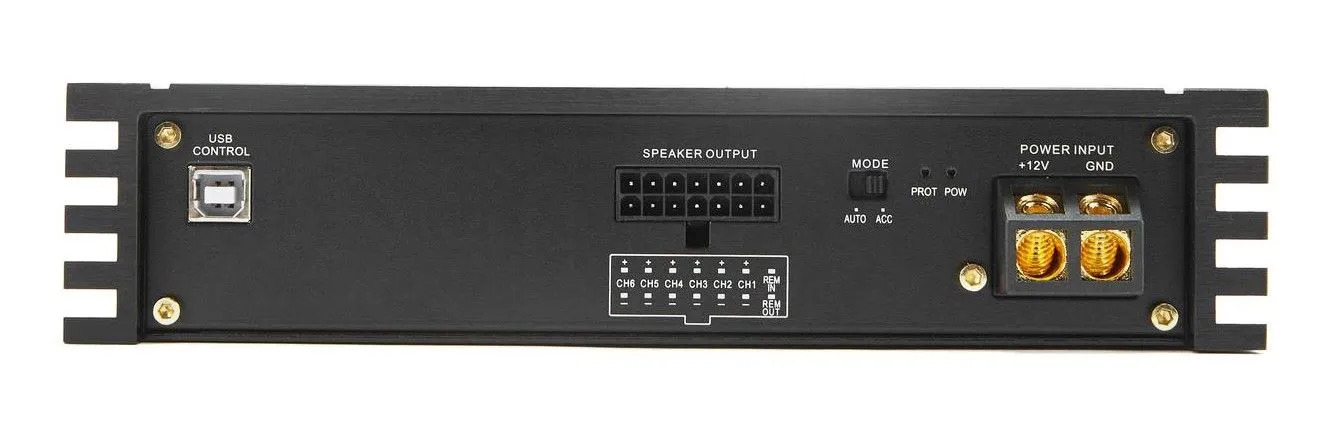

Amplifier output channel
6 high-level outputs
4 RCA outputs
Class D amplifier:
6CH x 90W (4Ω, 14.4V, 1kHz, 1% THD)
6CH x 135W (2Ω, 14.4V, 1kHz, 1% THD)

Sound parameters
Signal-to-noise ratio: ≥100dB
Total harmonic distortion (THD): ≤0.01%
Input sensitivity
Input impedance
RCA output voltage
Operating voltage range: 9~18V

Input channel equalizer
Each input channel has an independent 5-segment equalizer
Filter type: PE (top) / LS (low shelf) / HS (high shelf) / 1st row, 2nd row ALLPASS
Centre frequency point: 20Hz~20KHz
Q-value: 0,3~15
Amplification: -15dB~+15dB

Input sources
Analogue, optical, coaxial input, Bluetooth, OTG
Parameters (DLC)
Intelligent recognition and automatic switching of the recording mode for multiple audio sources
8-channel input

Individual settings for each channel
Output gain adjustment: -40dB~0dB
Polarity adjustment: positive/negative
Delay adjustment: 0-20ms
Surround sound channels:
Front sound field
Rear sound field
Central sound field
Sound field surrounding the "starry sky"
Subwoofer

Filters and output signal splitting
Filter type: Butterworth/Nink-Rein/Bessel
Equalizer mode
Baseline phase
Output polarity
Output delay
Independent adjustment / absolute adjustment / relative adjustment / split point adjustment

Output adjustments
Adjustment for each channel: 0°~360°
Polarisation for each channel: positive/negative
Delay for each channel: 0~20ms
Volume control:
Single channel volume: mute, -40dB~0dB
Subwoofer volume: mute, -40dB~0dB
Total subwoofer volume: mute, -40dB~+12dB
Total volume control: mute, -40dB~+12dB

Dimensions:
224mm x 156mm x 49mm
