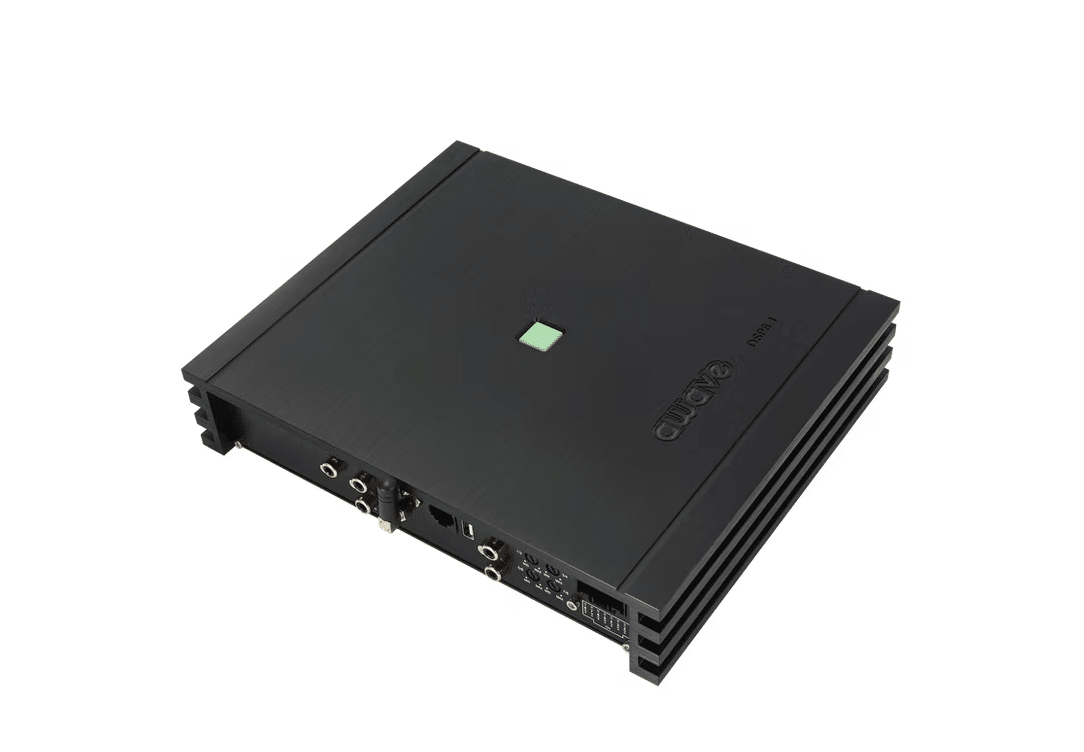

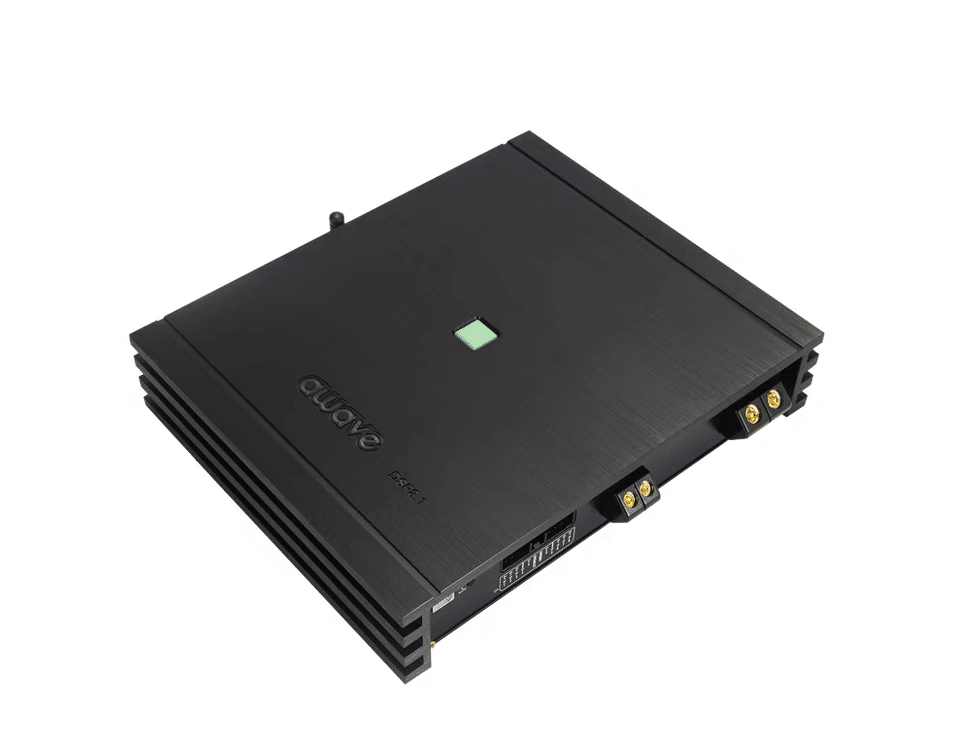

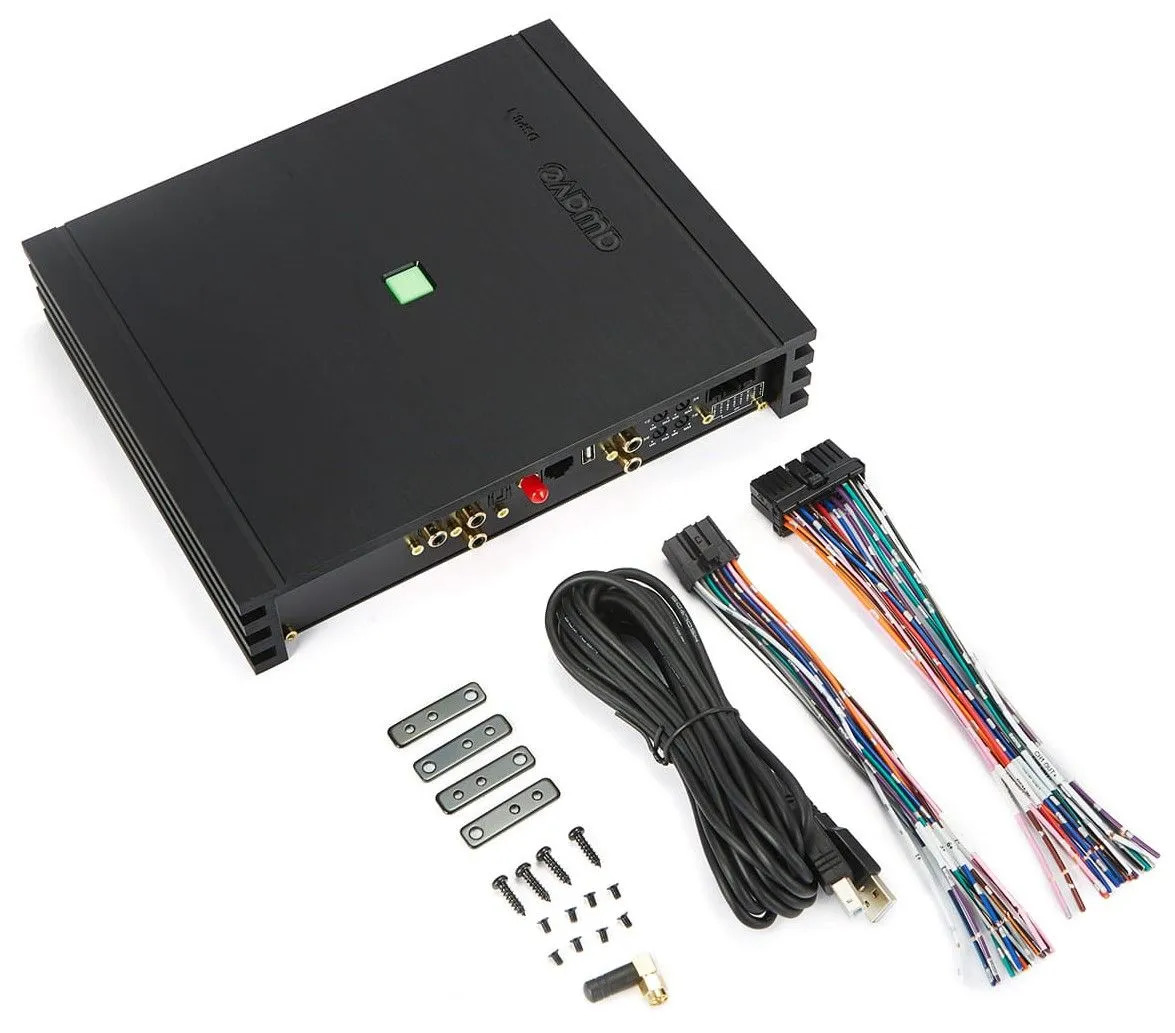

Процессорный усилитель Awave DSP8.1

High-performance DSP ADI processor
Analog-to-Digital Converter (ADC): AKM5538 HI-End 768kHz/32-bit

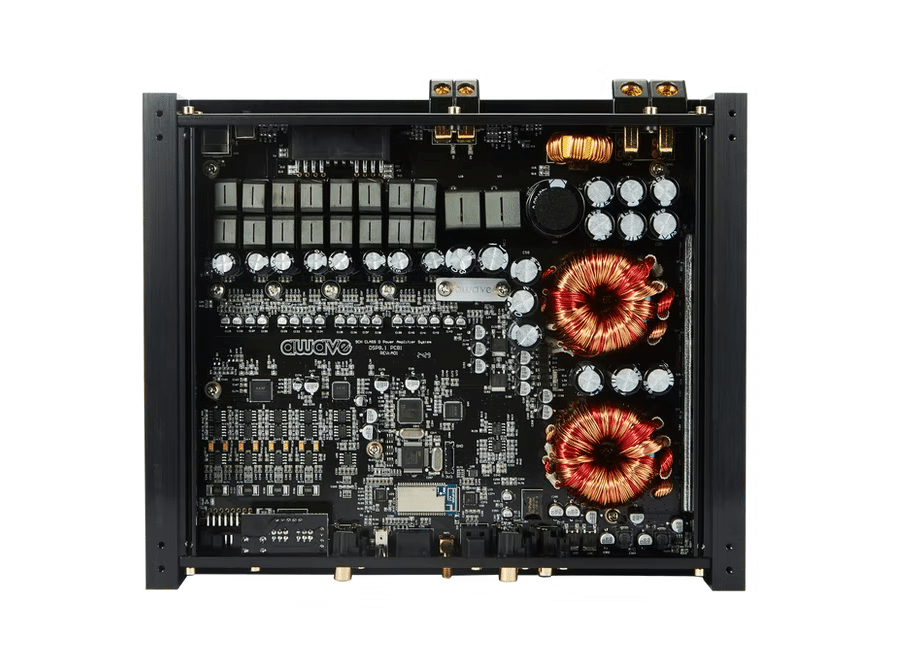

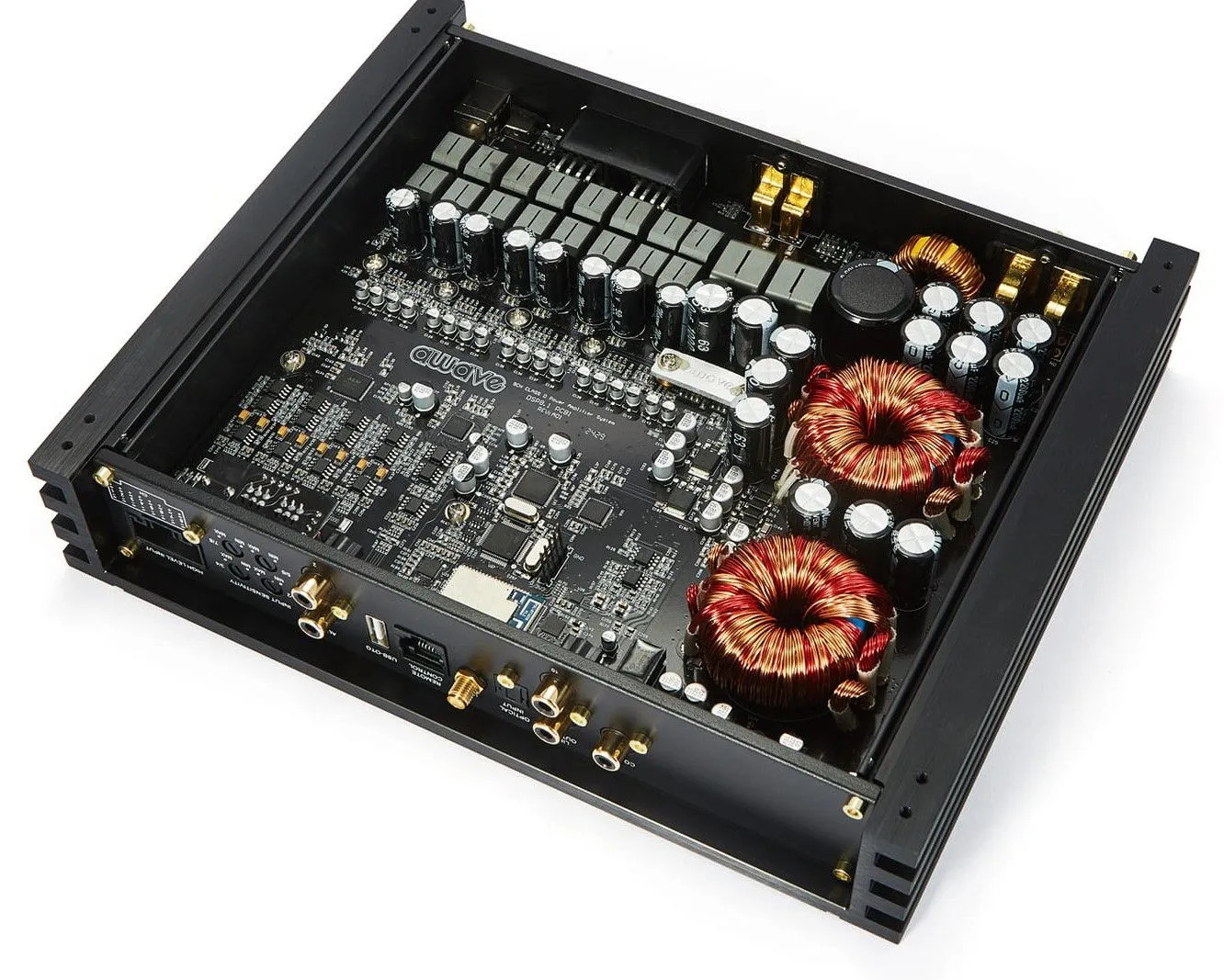

HI-End components
Input channel: High-level combined frequency input
Digital-to-Analog Converter (DAC): AKM4458 HI-End 768kHz/32-bit
Professional audio operational amplifier
Hi-End capacitors for professional audio

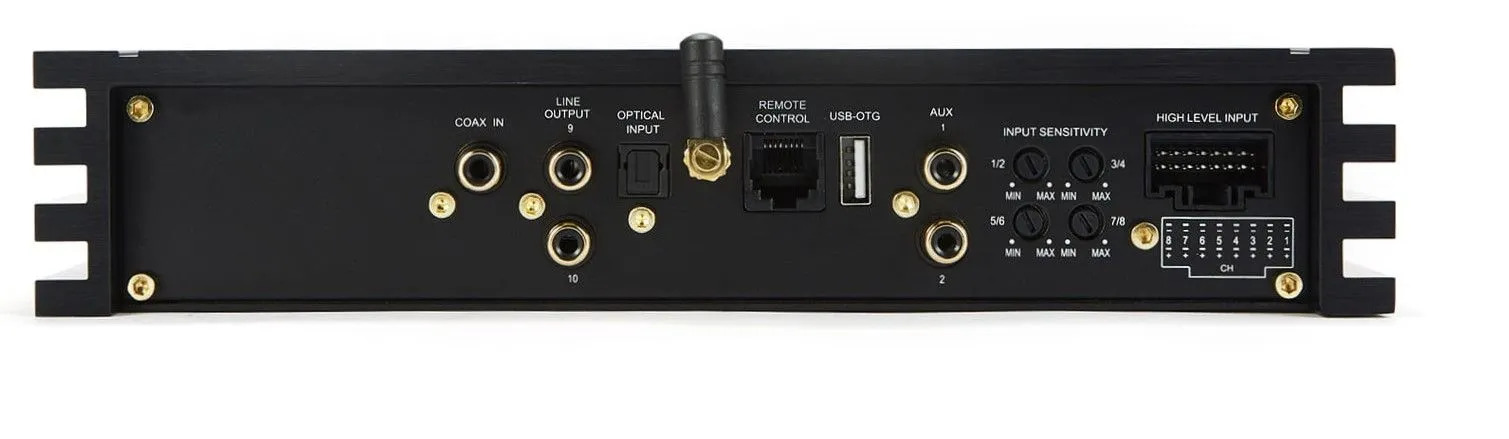

Inputs:
8 high-level inputs
2 AUX inputs
Optical input (Toslink), coaxial input - supports 192kHz/32-bit
OTG input - supports 192kHz/24-bit
Bluetooth 5.0 input

Bluetooth protocols and formats supported:
Protocol: A2DP / AVRCP
Formats: aptX, aptX HD, AAC, SBC

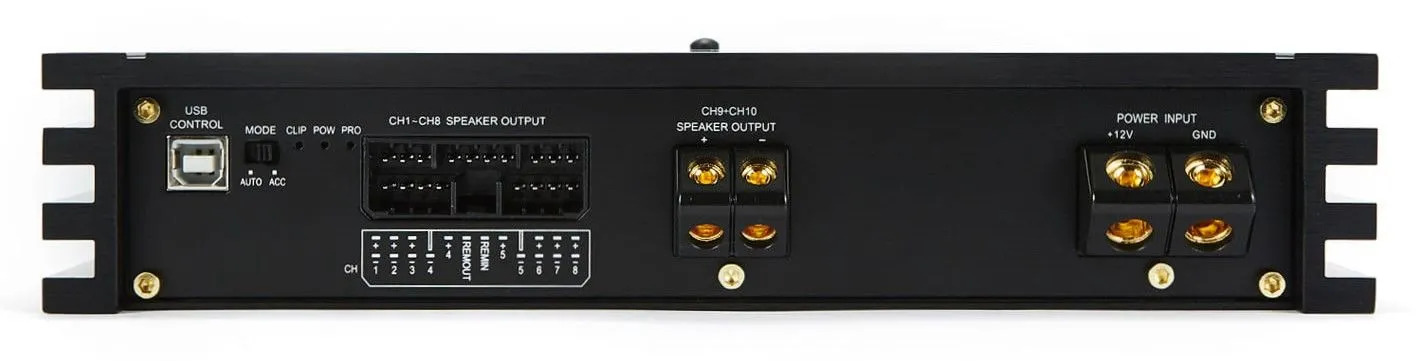

Outputs:
9 high-level outputs
2 RCA outputs
Class D amplifier:
8 channels × 90 W + 250 W (4Ω, 14.4V, 1kHz, 1% THD)
8 channels × 135 W + 350 W (2Ω, 14.4V, 1kHz, 1% THD)
Sound characteristics:
Signal-to-noise ratio: ≥ 100 dB
Total harmonic distortion (THD): ≤ 0.01%
Input sensitivity / Input impedance:
RCA / Cinch: 1-8V
High-level: 8-32V
RCA / Cinch: 22kΩ
High-level: 3,3-100Ω
RCA output voltage: 1.5V
Operating voltage range: 9-18V

Advanced audio features:
Equaliser for each input channel: 5-band
Filter types:
PE (Peak) - Peak filter
LS (Low Shelf) - low shelf filter
HS (High Shelf) - top shelf filter
All-pass (1st and 2nd order) - all-frequency pass filter
Centre frequency range: 20 Hz - 20 kHz
Q value: 0.3 - 15
Gain / attenuation: -15 dB ~ +15 dB

Advanced sound control:
Input support: High-level, AUX, optical, coaxial, Bluetooth, OTG
Automatic source recognition and intelligent switching of recording modes
8-channel input - independent regulation of each channel
Output gain adjustment: -40 dB ~ 0 dB
Polarity adjustment of each channel: positive/negative phase
Delay adjustment: range 0-20 ms

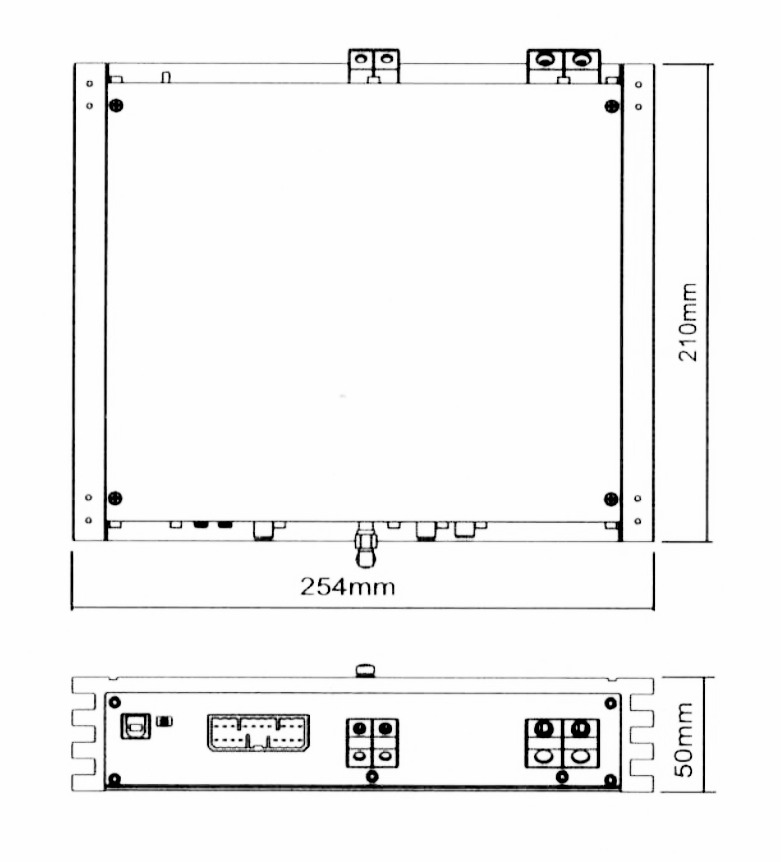

Dimensions:
255mm x 210mm x 50mm
